Color Filter - Blue - 512nm SWP - 102250248
Color Filter - Blue - 512nm SWP
Guaranteed Safe Checkout

Color Filter - Blue - 512nm SWP - 102250248
Color Filter – Blue – 512nm SWP

Contact

  • This field is for validation purposes and should be left unchanged.

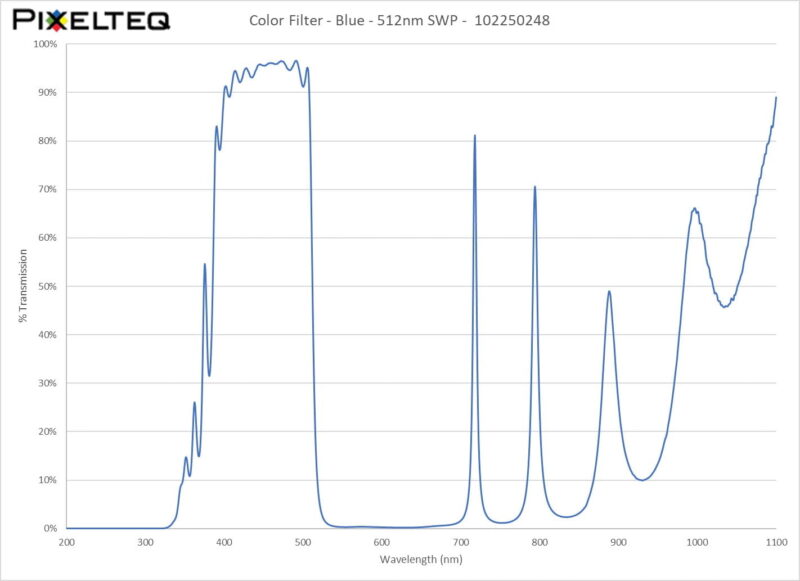

Click Here to Download Transmission Data
Dichroic Color Filters

PIXELTEQ’s blue color filters provide consistent vibrant color for all kinds of illumination and detection applications.  The short wave pass dichroic filter design transmits only the shorter blue visible wavelengths and reflects longer visible wavelengths.  Also known as thin film or interference filters, PIXELTEQ’s blue color filters use multi-layer hard sputtered coatings that provide durable shift-free performance without fading or aging in high output luminaires.

Dichroic Color Filters vs. Absorption Filters

Unlike absorptive colored glass or polymer gels, these thin film interference filters are virtually absorption free – providing superior transmission, rich saturated blue colors, and true lifetime performance.  The blue color filters also have a steep edge transition between the shorter wavelength transmission band and the longer wavelength reflection band – much steeper than colored glass or polymer gels.

OEM Custom Options

Custom colors are available to match specific cut-off wavelengths and calibrated CIE colors – engineered for your specific illumination source & optics to deliver the targeted color output.  These color filters can be patterned on gradient wheels or flags for smooth variable CMY or RGB color mixing.  Multiple colors can also be micro-patterned for full color and photorealistic imaging effects and gobos.  In addition to customized coatings, the optics are delivered in the form to fit your application – in specific substrates, shapes, and sizes.

Integrated Solutions

Color filters are commonly matched or combined with other types of filters to optimize performance in your specific application.  In many cases, an optimized OEM design combines multiple coatings onto the same optic to enhance performance, size, and weight of the device.  Some of these complementary filter types include:

  • Color Correction filters:  adjust the correlated color temperature from one type of lamp to match another
  • Patterned Color Filters:  smooth mixing from full to zero color saturation, plus combinations to precisely mix wide and rich color gamuts
  • Color Gobos:  multi-color and full color gobos micro-patterned for high resolution photorealistic images and effects
  • UV – IR filters:  transmit visible colors while blocking harmful Ultraviolet and/or Infrared light
  • Cold Mirrors:  reflect visible light into the illumination path while transmitting infrared light & heat through the rear of the reflector or outside the device
Applications:
  • Machine vision
  • OEM sensing & imaging
  • Technical, entertainment & architectural lighting
  • Digital projection & cinema
  • Copy & print processing
Benefits:
  • Rich saturated colors
  • Durable support for high output lamps
  • Lifetime performance – no aging or fading
  • High transmission / low absorption
  • Spectral stability indoor & outdoor
  • Standard & customer colors available
  • OEM customization

Quantity Discount

Buy 2 to 5 filters and save 10%

Buy 6 to 9 filters and save 20%

Buy 10 to 15 filters and save 25%

For orders of more than 15 it is recommended to contact us for better pricing.

 Discounts apply to quantity purchases of the same filter

Additional information

Weight 0.2 lbs
Dimensions 12 × 12 × 4 mm
Substrate

Borosilicate Glass

AOI

Thickness

0.7mm
