NIR PixelSensor | 8-Band Spectral Sensor

$195.00

  • 8-band photodiode array
  • 700, 750, 800, 850, 900, 950, 1000 nm; uncoated
  • NIR range (690-1010 nm)
  • 20-pin LCC package (9 x 9 mm)

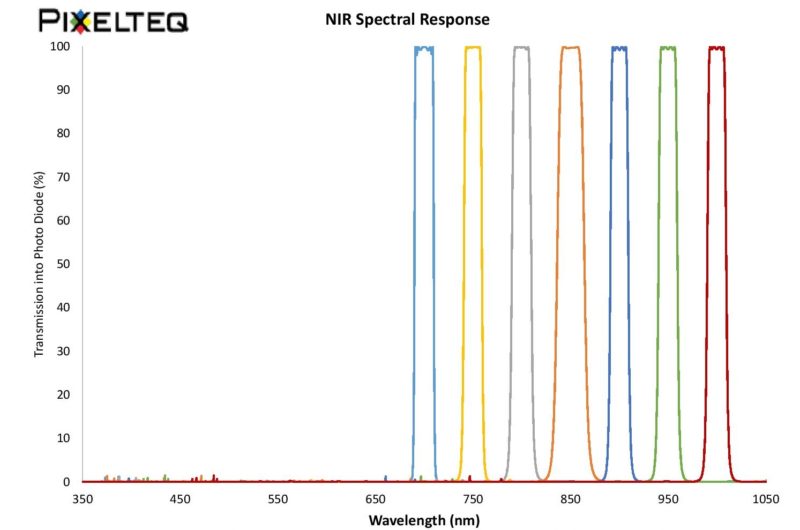

Spectral Response

Spectral Response



Sensor

Spectral FiltersStandard & custom spectral bands
(10-100 nm FWHM typical)
Spectral Range (VIS)400-800 nm
Si photodiodes
Spectral Range (NIR)690-1010 nm
Si photodiodes
PackageLCC Package (up to 8 spectral bands)

Dimensions

Dimensions8.9 x 8.9 x 2.4 mm
(0.35" x 0.35" x 0.1")
Active Area1.0 x 0.8 mm
(0.04" x 0.033")
Volume< 200 mm3
(0.015 in3)

Performance Characteristics

CharacteristicSymbolTestMinTypicalMaxUnits
Dark currentIDVR= 10V28nA
Shunt resistanceRSHVR= 10mV100M Ω
Junction capacitanceCJVR= 0V, f=100 kHz
VR= 50V, f=100 kHz
6
0.6
7
0.7
pF
Spectral range (VIS)^rangeSpot scan400800nm
Spectral range (NIR)^rangeSpot scan6901010nm
Breakdown voltageVBR1= 10µA75V
Noise equivalent powerNEPVR=5V@ λ = peak5x10-14W/√Hz
Response timetRL= 50 Ω, VR= 50V6.0ns
Absolute Maximum Rating
Reverse voltageVBR75V
Operating temperatureTO-40to+80° C

OEM Custom Versions

Contact us for custom spectral bands & volume pricing
